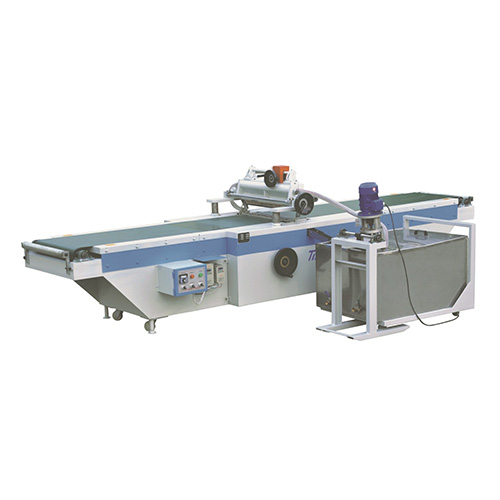

Curtain Coating Machine
Product Details：
Main feature：
1. Suitable for topcoat coating, the adjustment of coating thickness is extremely precise, to ensure the overall surface coating uniformity.
2. Equipped with lacquer circulation systemto reduce waste, conveying belt is made of high quality resin, solvent resistance and easy to clean, conveying belt and pump is controlled by frequency conversion, Suitable for a variety of lacquers.
600#
Effective processing width 600mm
Effective processing thickness 3-80mm
Min process length 300mm
Delivery speed 10-60m/min
Delivery power 0.75kw
Outlook size L*W*H 3000*1000*1300mm
1000#
Effective processing width 1000mm
Effective processing thickness 3-80mm
Min process length 300mm
Delivery speed 10-60m/min
Delivery power 1.5kw
Outlook size L*W*H 3000*1400*1300mm
1300#
Effective processing width 1300mm
Effective processing thickness 3-80mm
Min process length 300mm
Delivery speed 10-60m/min
Delivery power 1.5kw
Outlook size L*W*H 3000*1700*1300mm
